capabilities


Beam

ENERGY: 6 - 20 keV

FLUX: 7.7 x 1012 ph/sec @ sample

FOCUS: 70 µm (H) x 30 µm (V)

MINI BEAM: 5, 10, 20, 50, 300 µm apertures

ATTENUATION: 0 - 100 % with Al filters

STABILITY: beam positional feedback

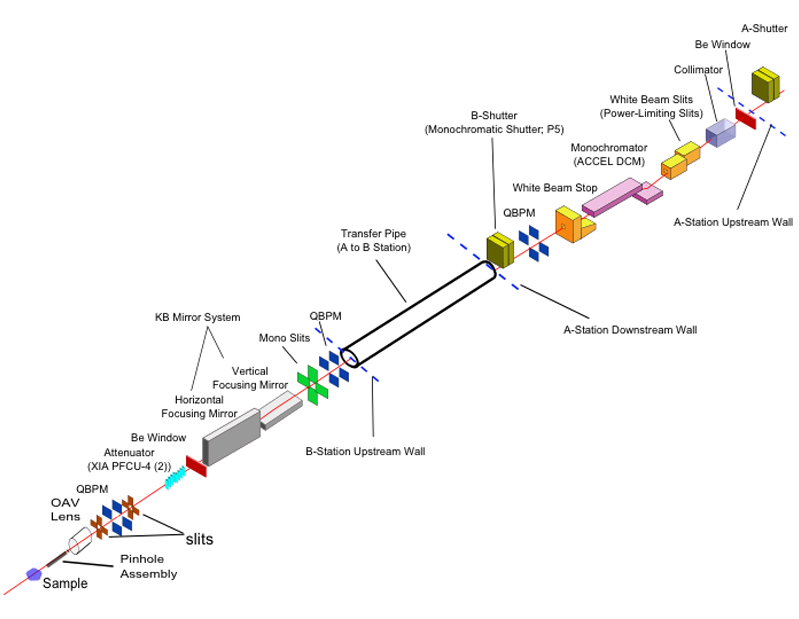

BEAMLINE: description, schematic


Detector

DETECTOR: DECTRIS Pilatus 6M

DISTANCE: 130 - 975 mm

2THETA: 0 - 15°

FRAMING RATE: 12 Hz



Experiment

GONIOMETER: ALIO (soc 1.2 µm)

CAMERA: on-axis visualizer

FLUORESCENCE: Rontec X-Flash silicon drift detector (SDD)

CRYO: Oxford Instruments Cryogen

MODES: auto (unattended, queued jobs) or manual

ACCESS: on-site, remote, mail-in


Automation

ROBOTICS: ACTOR robot
(Rigaku, GEN 4, continuous soak)


CAPACITY: 180 - 240 samples

DEWARS: 3 (independently configurable),
5 pucks / dewar


PUCKS: ACTOR pucks, Unipucks, ALS pucks

CENTERING: diffraction rastering with loop centering (auto or manual)


Samples

PINS: 18 mm; all metal base types

LOOPS: Molecular Dimensions:
     LithoLoop (round or mesh)
MiTeGen:
     MicroLoop (regular style),
     MicroCrystal Mount
Hampton Research:
     CryoLoop



Acceptable but not compatible with auto centering:

Molecular Dimensions: LithoLoop (elliptical)

MiTeGen: MicroMount, MicroLoop E, MicroMesh, MicroGripper


Data

STORAGE: >60 TB

PROCESSING: xds, autoPROC, mosflm, d*TREK

ANALYSIS: crystallography software
view list


TRANSFER: • IBM Aspera (FASP)
   high-speed, encrypted

• rsync
