Oxford-ic-plus-quad is an EPICS driver for the Oxford Danfysik (now FMB Oxford) 4 channel IC PLUS Electronics module. This driver currently supports the module without the HV power supply (part no. YMM-0012). Support for the module with the HV power supply (part no. YMM-0009) could be added if needed.

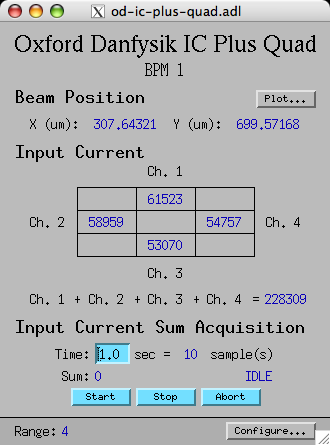

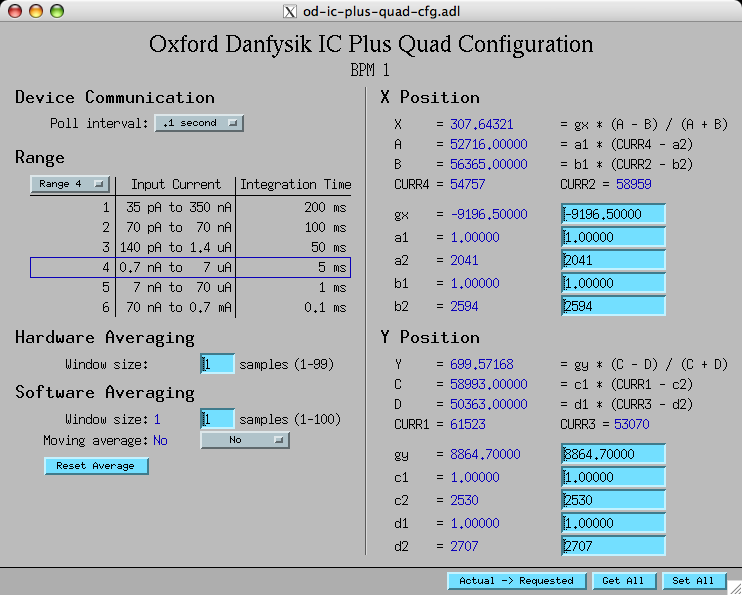

The driver is written as an EPICS database. It uses the asyn module to communicate with the device via an RS-232 serial connection. It supports most of the capabilities of the device. It also supports a software acquisition mode and software averaging of the channel input currents. The screenshots show what is supported.
